HD SDI Camera 1080P 2.0MP 30/25fps D-WDR AUTO IRIS Stage on delay no compression low loss and real-time transmission for Live broadcast Cam - black
1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission
•1080p(1920x1080)@30/25fps
•OSD menu,Motion detection,Privacy Zone,HLC,BLC

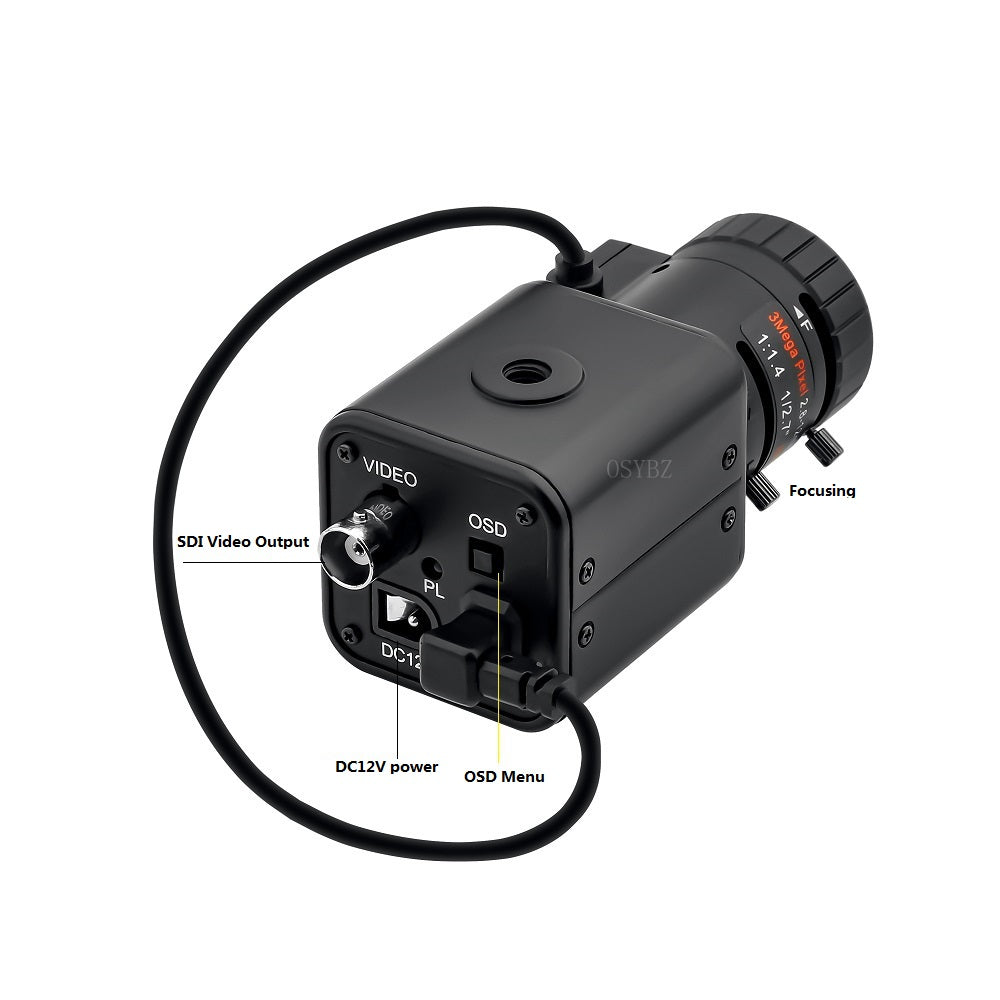

•Output-Megapixel HD-SDI(BNC) CVBS (BNC)
Model No. |
OSYBZ-SDI12 |
Image Sensor |
2.0 Mega Pixel, Panasonic CMOS Sensor |
Effective pixels |
1920(H) x 1080(V) |
Scanning system |
Progressive Scan |
Minimum illumination |
0.001 Lux |
Lens |
3MP 2.8-12mm Lens |
IR view distance |
N/A |
WDR (Long and Short exposure) |
OFF/ON(Level Adjustable) |
O.S.D |
Built-in |
3D-DNR (3D Digital Noise Reduction) |
OFF/ON(LOW/MIDDLE/HIGH) |
Sens-Up |
OFF/ON |
Motion Detection |
OFF/ON |
Privacy Zone |
OFF/ON |
HLC |
OFF/ON |
B.L.C. control |
OFF/ON |
Defog |
OFF/ON |
White balance |
AWB/ATW/PUSH/MANUAL |
A.G.C |
HIGH / LOW |
Electronic shutter Speed |
AUTO/MANUAL/FLK |
Video output |
HD-SDI(SMPTE 292M compatible) / :1.0 Vp-p Composite Signal (75ohm) |
Operation temperature |
-10℃ - +50℃ |
Operation Humidity |
Within 95% RH |
Power supply |
DC12V(+/-15%) |
Power Consumption |
100mA |
Item Included:

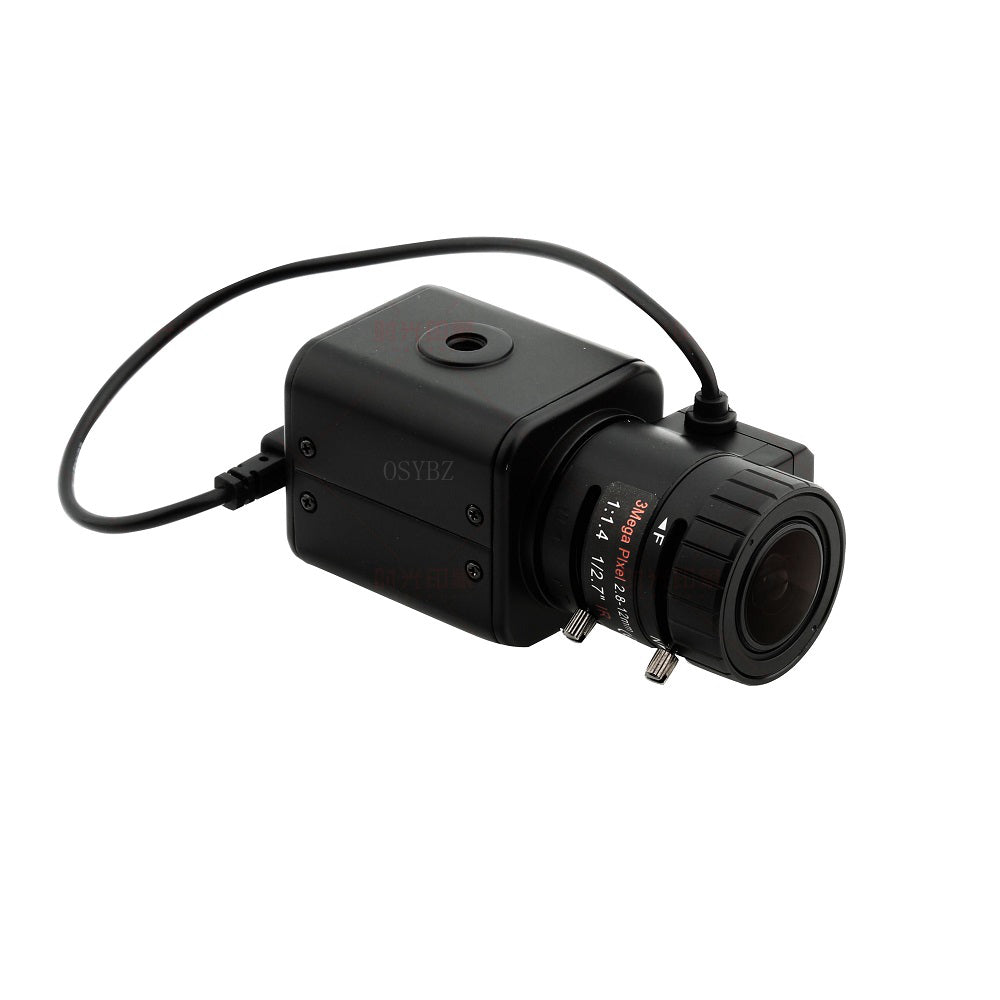

1 x CCTV 2.0MP Lens 2.8-12mm 1080P SDI Camera
1x Power Supply>
