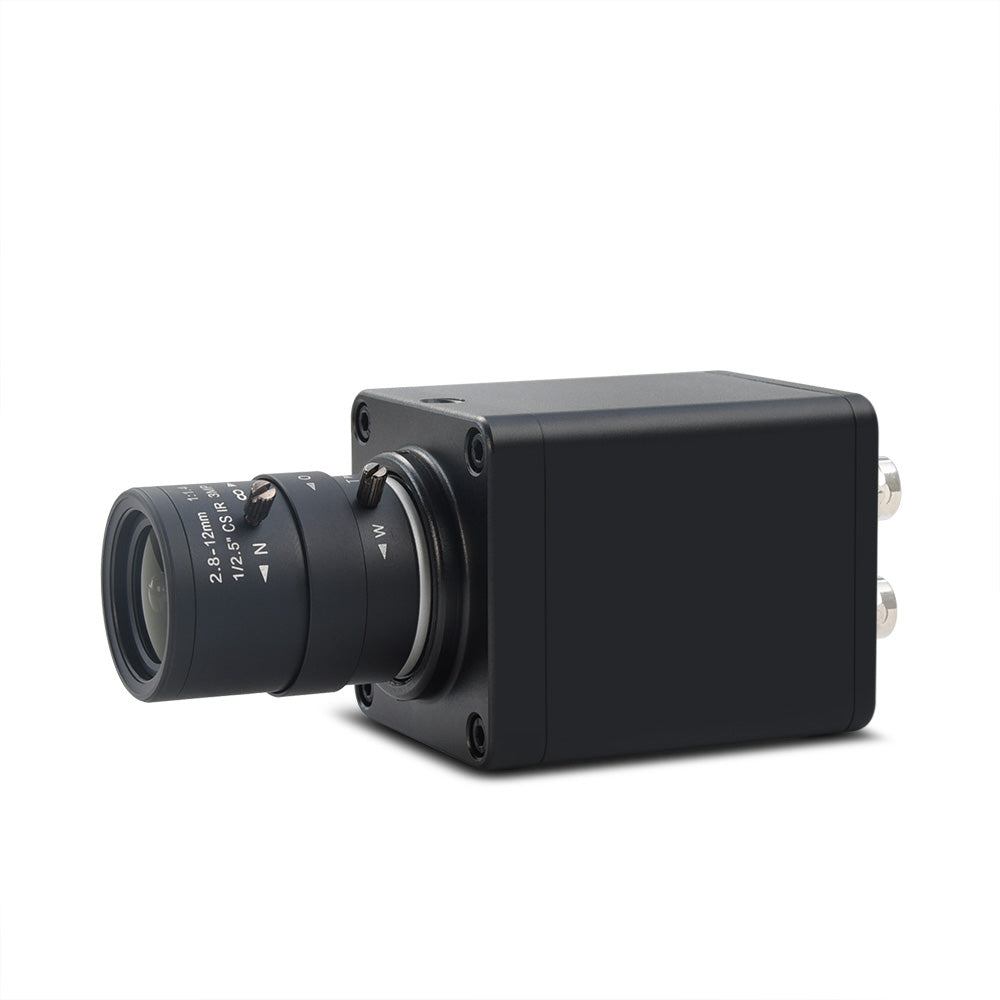

CCTV Industrial HD SDI 2.0MP 1080P 1080i 60fps/50fps Lens 2.8-12mm Security Box SDI Camera
3G SDI Camera Using 1/2.8 CMOS image sensor, 3G / HD SDI digital signal and CVBS analog signal output
Multiple resolutions output, Support 1080@60/50/30/25P, 1080@60/50i, 720@60/50/30/25P，It can better compatibility with switcher or other device
1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission
Ultra-wide dynamic capabilities in a very strong light, can see the features of the image contrast light in a small range, and super wide dynamic , and the highest can reach 60fps.
Product overview
2.0Mega Pixel SONY IMX 290+ Eyenix 778

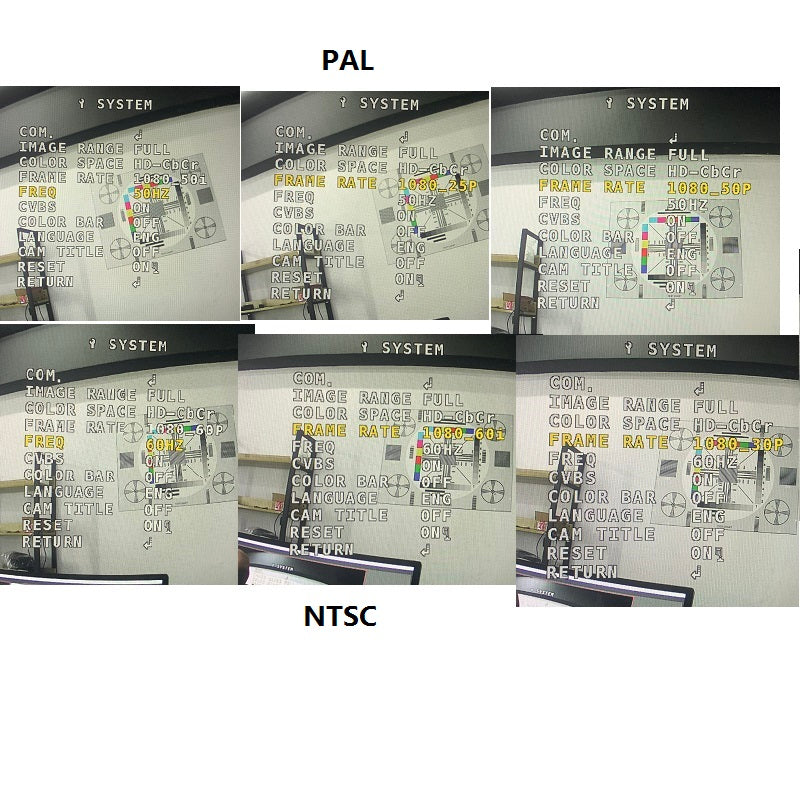

1080p(1920x1080)@NTSC 60fps/30fps PAL 50fps / 25fps(You can choose from the menu)
Support WDR,3D-DNR
Defog:Use this function in the fog weather.
OSD menu,Motion detection,Privacy Zone,HLC,BLC
TV Out(BNC) with NTSC/PAL Selectable

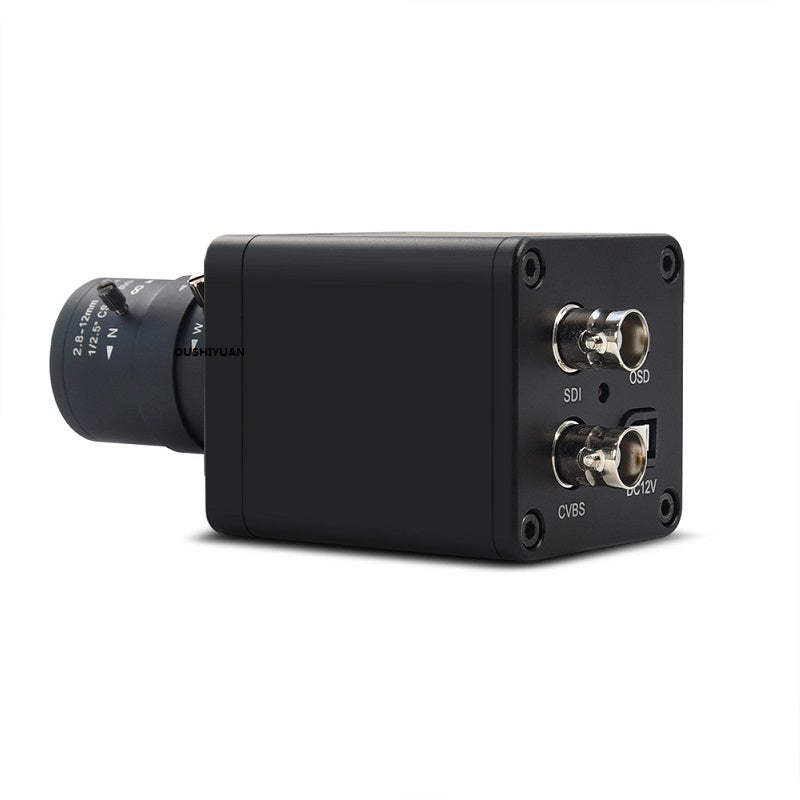

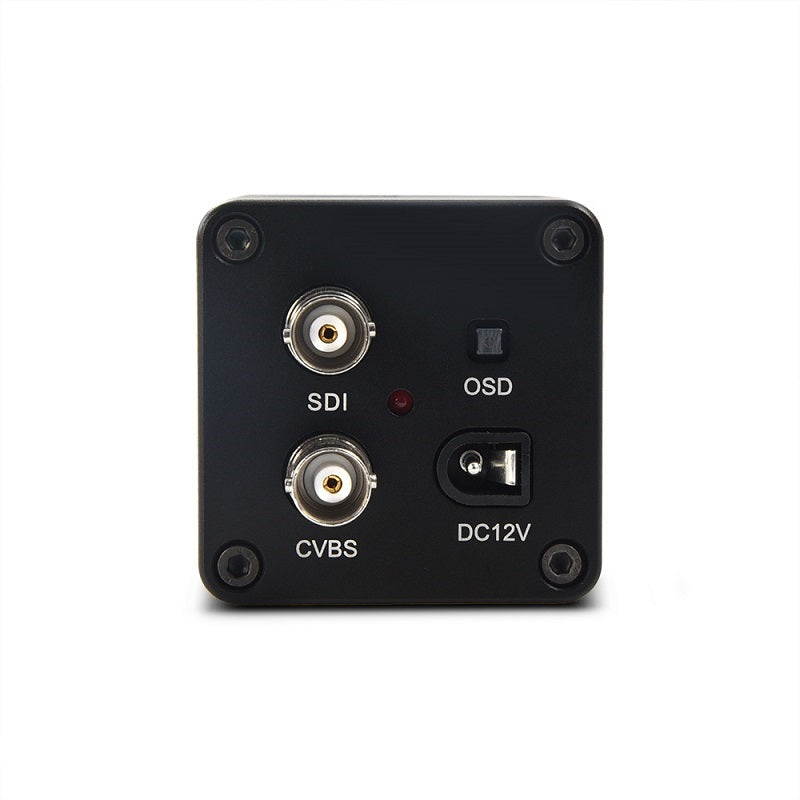

Dual Output-Megapixel HD-SDI(BNC)&CVBS:1.0 Vp-p 75ohm
Technical parameters
| Model No. |
OSY-SDI-60
|
||||||
| Image Sensor | 2.0Mega Pixel,Panasonic V34229 +Eyenix 778 | ||||||
| Effective pixels | 1920(H) x 1080(V) | ||||||
| Scanning system | Progressive Scan | ||||||
| Minimum illumination | 0.2 Lux(Color/Day) 0.01Lux(B/W) | ||||||
| Lens | 2.8-12mm | ||||||
| IR view distance | N/A | ||||||
| WDR (Long and Short exposure) | OFF/ON(Level Adjustable) | ||||||
| O.S.D | Built-in | ||||||
| 3D-DNR (3D Digital Noise Reduction) | OFF/ON(LOW/MIDDLE/HIGH) | ||||||
| Sens-Up | OFF/ON | ||||||
| Motion Detection | OFF/ON | ||||||
| Privacy Zone | OFF/ON | ||||||
| HLC | OFF/ON | ||||||
| B.L.C. control | OFF/ON | ||||||
| Defog | OFF/ON | ||||||
| White balance | AWB/ATW/PUSH/MANUAL | ||||||
| A.G.C | HIGH / LOW | ||||||
| D-ZOOM | 1.0x - 8.0x | ||||||
| MIRROR | OFF/ON | ||||||
| FLIP | OFF/ON | ||||||
| TV system | PAL/NTSC | ||||||
| Electronic shutter Speed | AUTO/MANUAL/FLK | ||||||
| Video output | HD-SDI(SMPTE 292M compatible) / CVBS:1.0 Vp-p Composite Signal (75ohm) | ||||||
| Operation temperature | -10℃ - +50℃ | ||||||
| Operation Humidity | Within 95% RH | ||||||
| Power supply | DC12V(+/-15%) | ||||||
| Power Consumption | 1000mA | ||||||
Package Included:
1X SDI Camera
1X SDI Camera
1X Power supply
