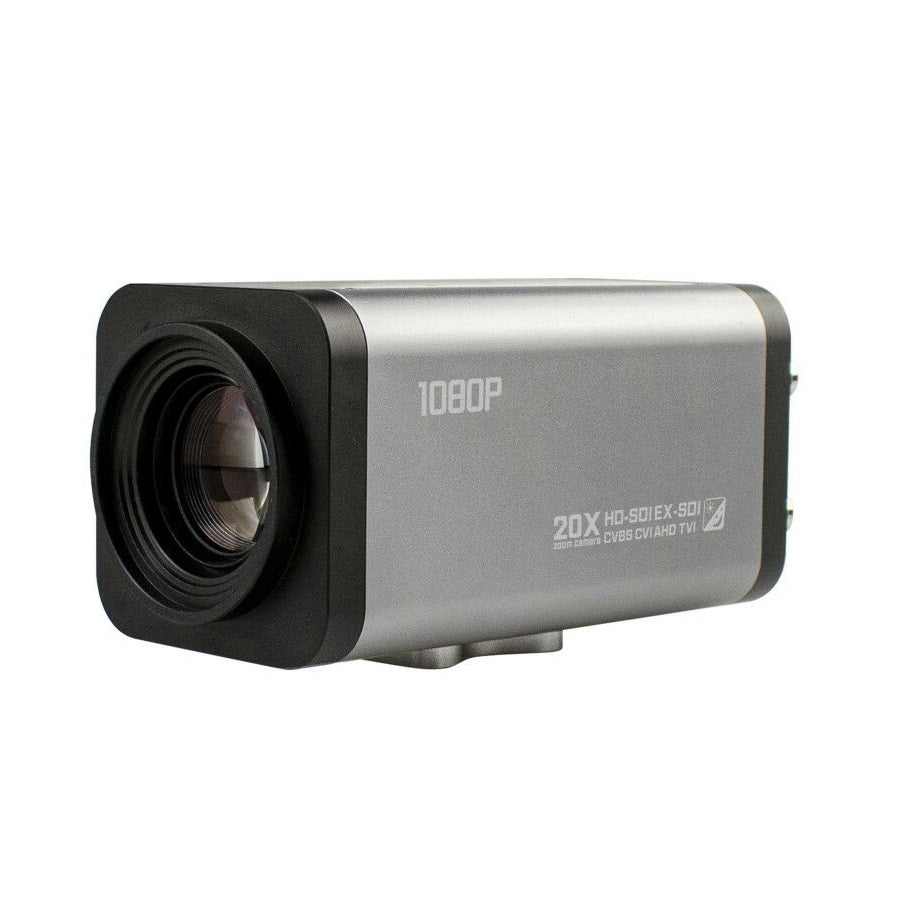

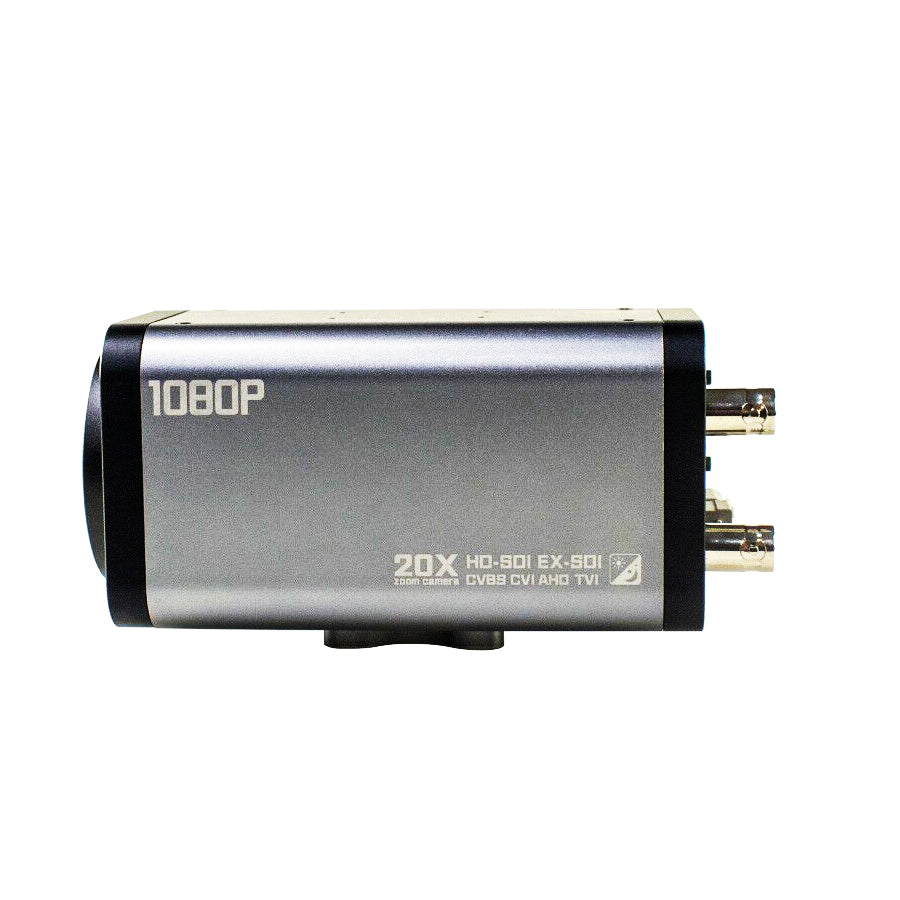

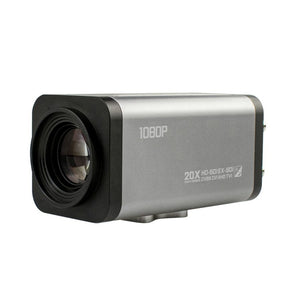

CCTV SONY Sensor 1080P 1/2.8 High Sensitivity 2.0MP HD SDI Camera 20X Optical Zoom Auto Focus Lens no latency no compression security box sdi camera for industry filed.
HD SDI Cam 1080P high definition image quality, CCTV SONY Sensor 1080P 1/2.8 High Sensitivity 2.0MP HD SDI Camera 20X Optical Zoom Auto Focus Lens Digital high speed focus, 2MP 1080P HD Digital CCTV Security Camera color without night vision.
Features:
Sony CMOS HD SDI 2.0Megapixel Sensor
Max. Resolution: 1920x1080@25fp/30fps 720p25fps/30fps/50fps/60fps
Built-in ICR function
Minimum illumination: 0.001Lux (IR ON)
Digital high speed focus
Super low illumination and power consumption
Specification
|
Model |
OSYBZ-SDI20X |
|
Signal model |
PAL/NTSC |
|
Image sensor |
SONY CMOS |
|
Effective pixel |
1920(H)×1080(V) |
|
Horizontal resolution |
HD-SDI 1080P 25fps/30fps AHD/CVI/TVI 1080P /CVBS 1200TVL |
|
Minimum illumination |
Color：0.001Lux |
|
Digital electronic zoom |
Yes |
|
WDR |
Yes |
|
3D noise reduction |
Yes |
|
Frame accumulated |
Yes |
|
Sync system |
Internal sync |
|
Optical focus |
20 x Optical Zoom Lens( F=5.7-102.6mm,F1.6-F3.5) |
|
Focus |
Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function |
|
Gain Control |
Auto/Manual |
|
White balance |
Auto |
|
Iris |
Auto |
|
S/N radio |
>60dB(Enhanced) |
|
Electronic shutter |
1/30~1/30000 seconds 1/25~1/30000 Dss(off,x2 x3 x4) |
|
Video output |
1.0Vp-p 75 Ω |
|
Angle of View |
57.4 degrees(WIDE) 3.2 Degrees(TELE) |
|
Language |
English |
|
Screen menu |
AWB, MASK, DNR, Strong light Optimizer, MIRROR |
|
Control |
Pelco D, Pelco P |
|
Baud rate |
2400/4800/9600 |
|
Gama modulus |
0.45 |
|
Power supply |
DC12V,2000mA |
|
Work temperature |
-20 ° C ~+ 70 °C |
Packing List:
1X SDI 20X Zoom SDI Camera
