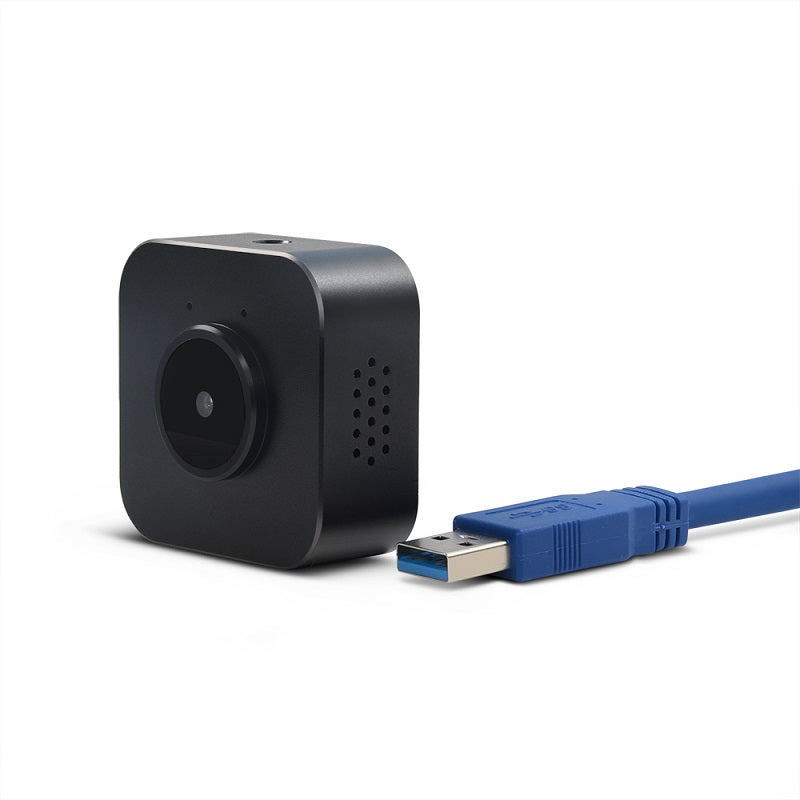

Industry USB HD 8MP Camera No Distortion Fast Auto focus Lens Sony Sensor IMX179 USB Camera
Product model | OSYBZ-U10 | |
Sensor | SONY IMX179 | |
Lens Size | 1/3.2inch | |
1.4um | ||
Image area | 6.18mm x 5.85mm | |
Maximum effective pixel | 3264(H) X 2448(V) 8.0MP | |
Output image format | MJPEG | |
Supported resolution and frame rate | 3264X2448 @ 15fps / 2592X1944@ 15fps | |
1920x1080 @ 30fps / 1600X1200@ 30fps | ||
1280X720 @ 30fps / 960X540@ 30fps | ||
800X600 @ 30fps / 640X480@ 30fps | ||
Signal to noise ratio | 34dB | |
Dynamic range | 72.5dB | |
Sensitivity | 0.65V/lux-sec@550nm | |
Minimum illumination | 0.5lux | |
Shutter type | Electronic rolling shutter / Frame exposure | |
interface type | USB2.0 High Speed | |
Support drive - free protocol | USB Video Class(UVC) | |
Support OTG protocol | USB2.0 OTG | |
Automatic exposure control AEC | Support | |
Automatic white balance AEB | Support | |
Automatic gain control AGC | Support | |
Button pictures | Support | |
Adjustable parameter | Brightness, contrast, color saturation, and tonal clarity | |
Gamma gain white balance contrast exposure | ||
lens parameters | No Distortion Lens size 1/3.2 | |
fast auto focus 75degree | ||
USB | USB BUS POWER 4P-2.0mm | |
Working voltage | DC5V 200MA | |
Working temperature | -10~70℃ | |

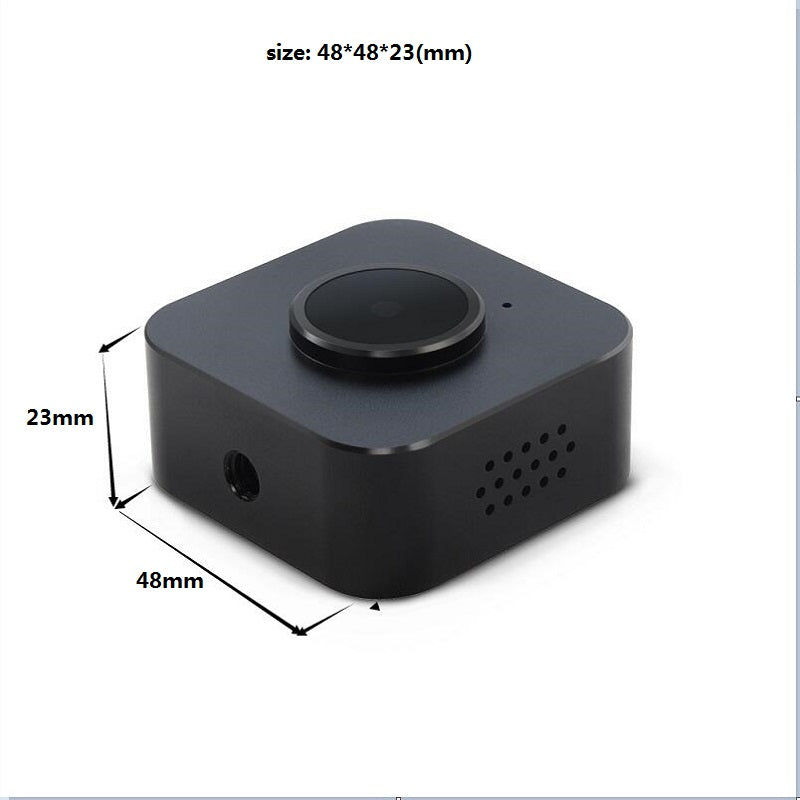

module module | 38X38mm(compatible 32X32mm) | |
Supported system | WinXP/Vista/Win7/Win8 | |
Linux with UVC(above linux-2.6.26) | ||
MAC-OS X 10.4.8 or later | ||
Wince with UVC | ||
Android 4.0 or above with UVC | ||
Package includes: 1X USB 8MP Camera 1X USB Cable |
||
