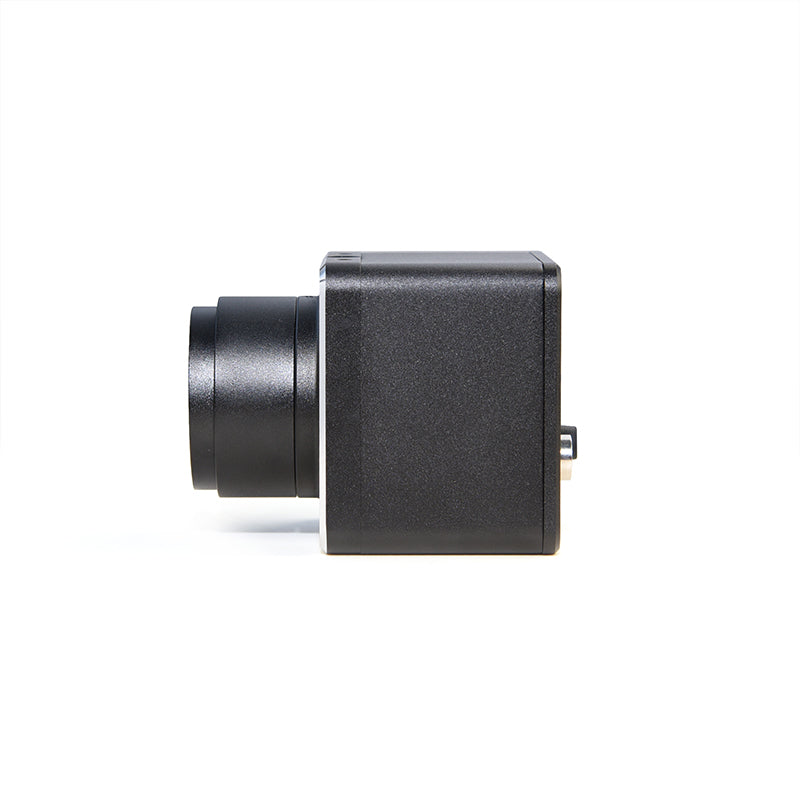

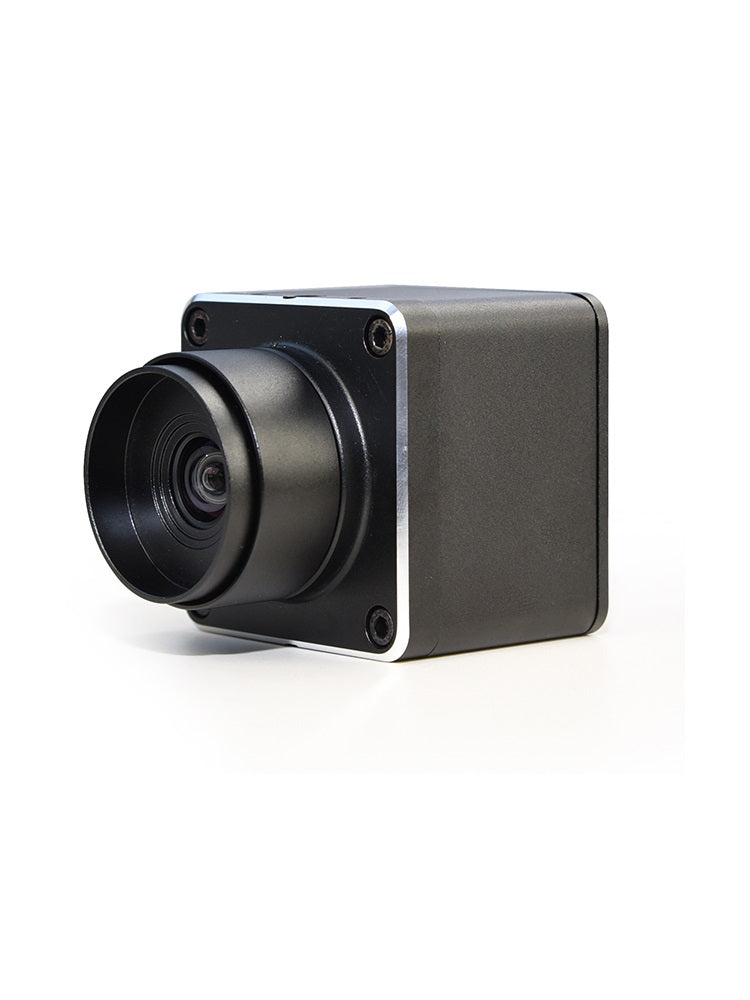

4K HDMI LIVE BROADCAST CAMERA 2160P30/25/24FPS 1080P60/50/30/25FPS 1080I60/50FPS, STREAMING WEBCAM INDUSTRY WITH NO DISTORTIONNT 3.2MM LENS

How to change HDMI output resolution

The camera will OSD Control function (Initial state), Press the left button,

reboot when change HDMI output resolution

Working state overtemperature

The working heat of the camera will be relatively large, which will not affect

the normal use.

Whether firmware can be upgraded

Open the shell and use TF memory card to upgrade,

If no new firmware is released, no upgrade is required

No image displayed

Try to change the HDMI output resolution

The Color Cast when change other lens

Please make sure new lens with IR filter

Picture distortion

The distortion is caused by the lens, 3.2MM lens no distortion , 2.8-12MM

lens large distortion , 6-12MM and 5-50MM lens small distortion.

Solution ：1/2.8" 8MP 4K CMOS Senso

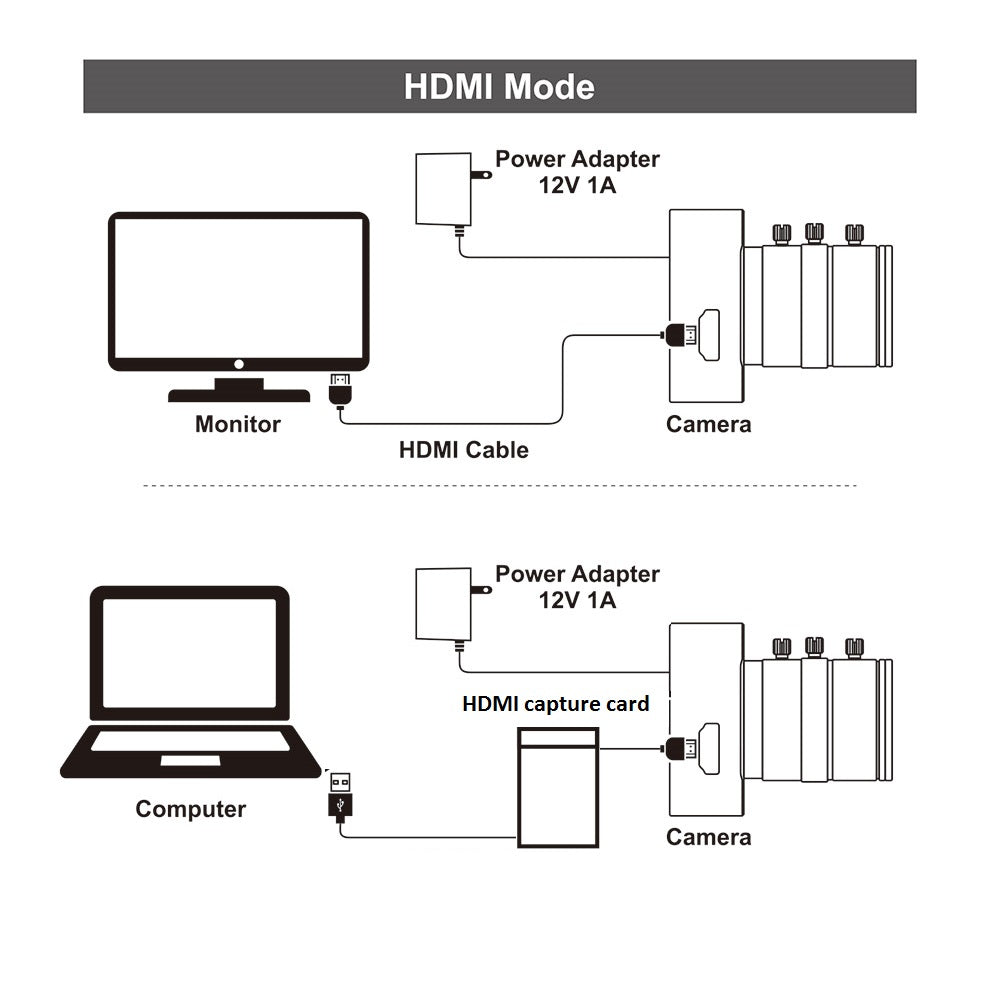

HDMI output：

2160P30/25/24fps,1080P60/50/30/25fps,

1080i60/50fps, 720P60/50fps

The resolutions listed above need to be supported by your

monitor or capture device. For example, if your monitor

does not support 4K, The 3840*2160P30/25/24fps option

will not appear in the resolution selection list.

ISO ：Auto / Manual (100~1600)

Electronic shutter：Auto / Manual (1/10~1/2000)

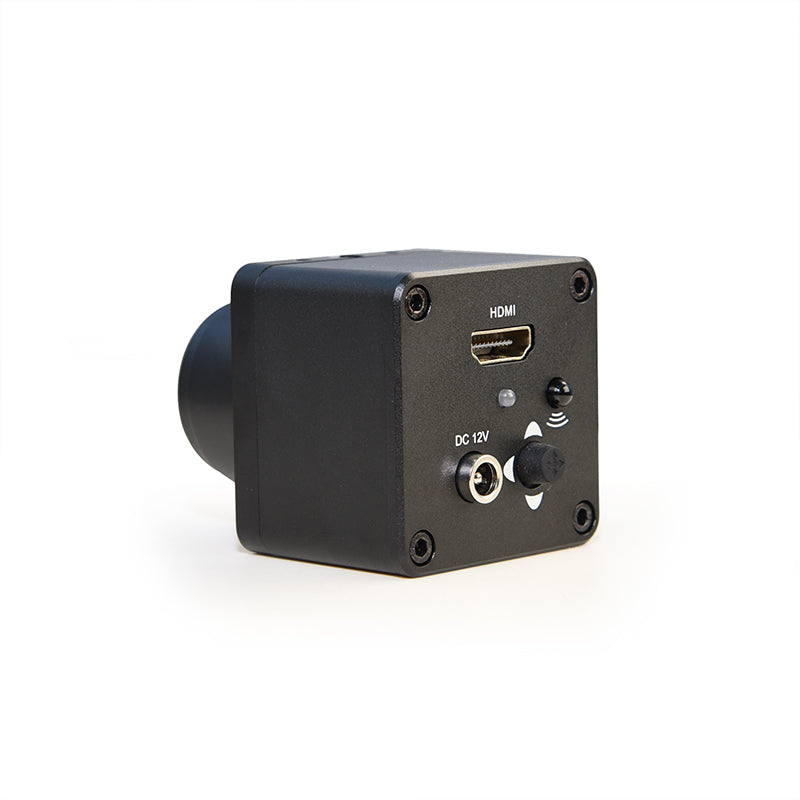

Power On：Auto Power On when plug ac adapter
Press camera middle button

Digital Zoom ：Support

Power O：Long press camera middle button power o

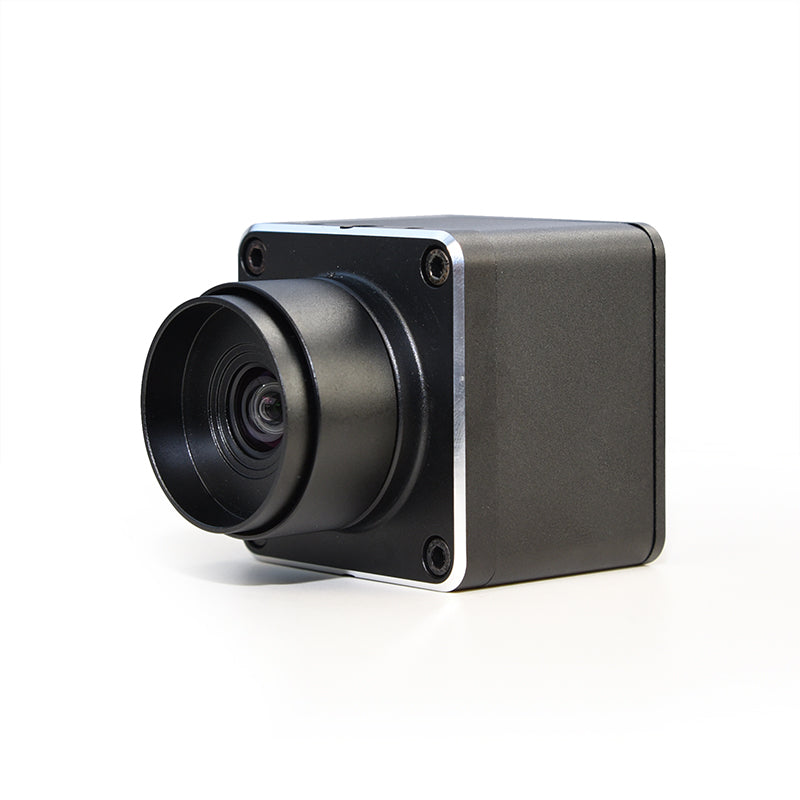

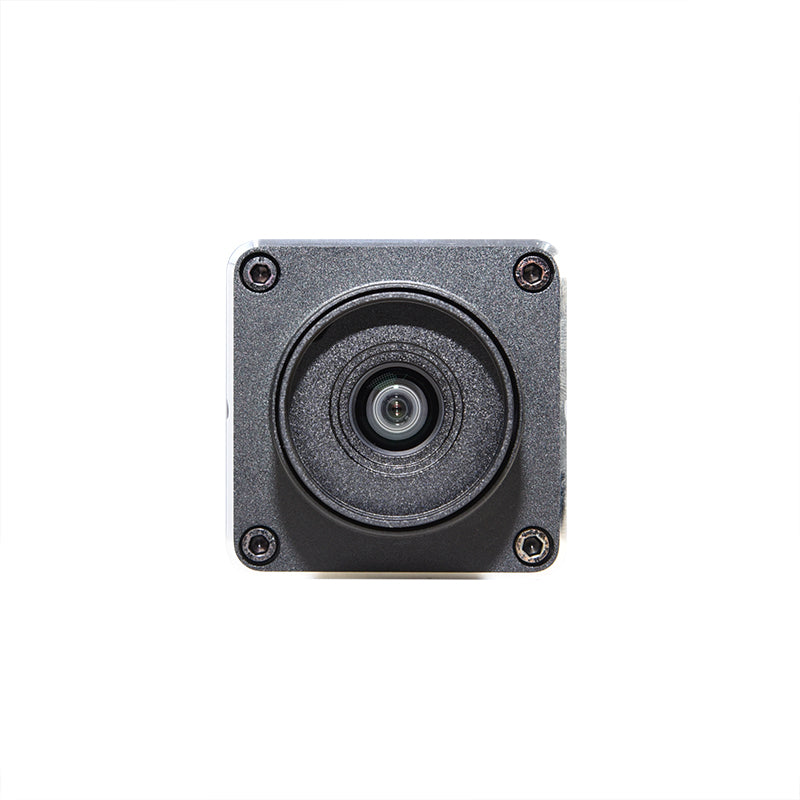

Lens：CS mount 3.2mm

Exposure：AUTO / Manual

EV：Support 12 Level manual Settings

White Balance：AUTO / Manual

Power Mode：DC 12V 1A

Screen Orientation Change：Support screen rotation 180 degrees and Mirroring

Zoom mode：Manual ( optical zoom )

Focus mode：Manual
