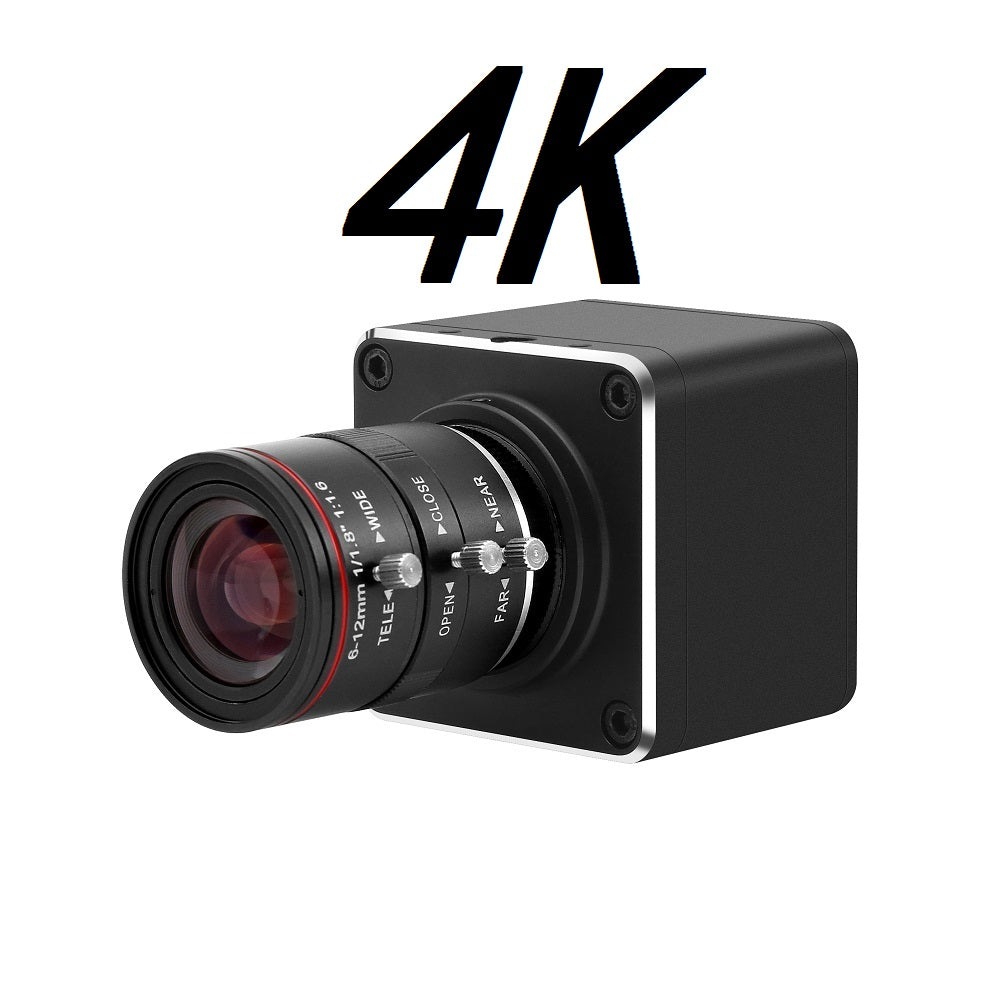

12MP HDMI Camera 4K 2160P30/25/24fps 1080P60/50/30/25fps 1080i60/50fps, Streaming Webcam Industry C/CS-Mount with 6-12mm Lens
12MP 4K HD HDMI camera 2160P30/25/24fps 1080P60/50/30/25fps 1080i60/50fps, Streaming Webcam with 6-12mm lens C/CS mount You can change other lens ( 2.8-12MM, 3.6MM, 5-50MM) with Aluminum Alloy housing .
Digital Security Camera, Sensing size: 1/2.8" 8MP 4K CMOS Sensor . It’s a good choose for High-Quality Live Streaming teaching charity live broadcast, church video art, Industrial field.
How to change HDMI output resolution
The camera will OSD Control function (Initial state), Press the left button,
reboot when change HDMI output resolution
Working state overtemperature
The working heat of the camera will be relatively large, which will not affect
the normal use.
Whether firmware can be upgraded
Open the shell and use TF memory card to upgrade,
If no new firmware is released, no upgrade is required
No image displayed
Try to change the HDMI output resolution
The Color Cast when change other lens
Please make sure new lens with IR filter
Picture distortion
The distortion is caused by the lens, 3.2MM lens no distortion , 2.8-12MM
lens large distortion , 6-12MM and 5-50MM lens small distortion.
Solution ：1/2.8" 8MP 4K CMOS Sensor

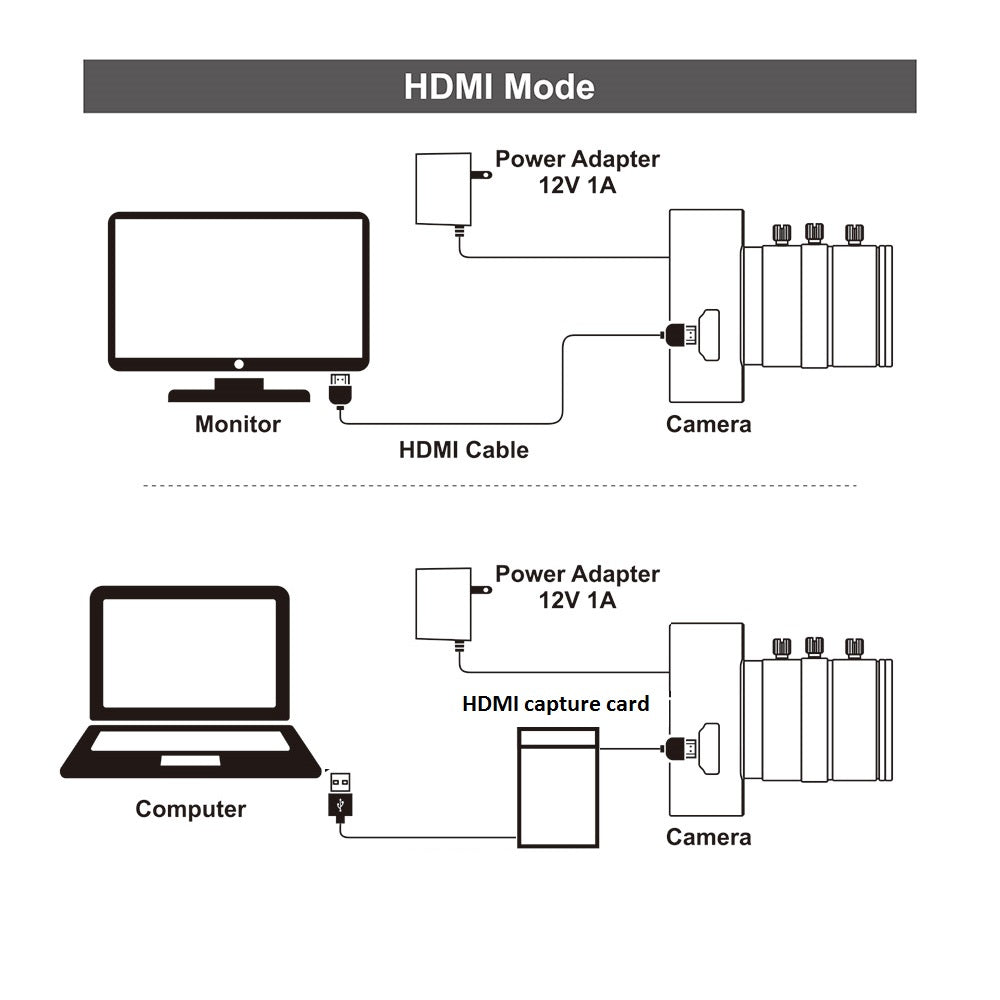

HDMI output：
2160P30/25/24fps,1080P60/50/30/25fps,
1080i60/50fps, 720P60/50fps
The resolutions listed above need to be supported by your
monitor or capture device. For example, if your monitor
does not support 4K, The 3840*2160P30/25/24fps option
will not appear in the resolution selection list.
ISO ：Auto / Manual (100~1600)
Electronic shutter：Auto / Manual (1/10~1/2000)
Power On：Auto Power On when plug ac adapter
Press camera middle button
Digital Zoom ：Support
Power O：Long press camera middle button power o
Lens：C/CS mount
Exposure：AUTO / Manual
EV：Support 12 Level manual Settings
White Balance：AUTO / Manual
Power Mode：DC 12V 1A
Screen Orientation Change：Support screen rotation 180 degrees and Mirroring
Zoom mode：Manual ( optical zoom )
Focus mode：Manual
